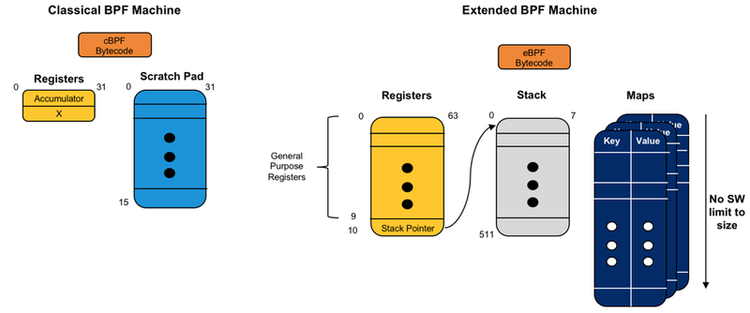

深入了解 ebpf map

探究 ebpf map 在 kernel 中加载和使用的原理,最后给出两个比较常见的 map 使用的示例
深入了解 ebpf map

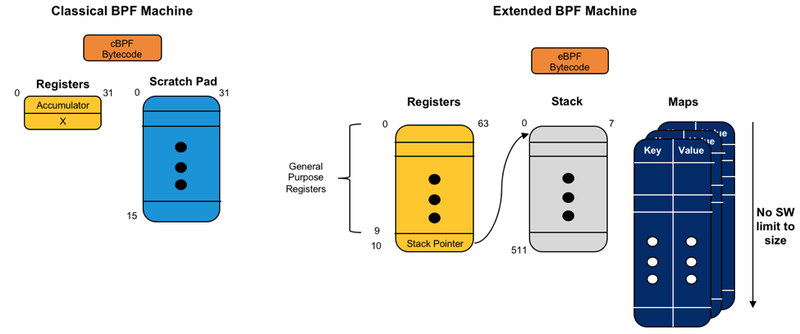

ebpf map 原理

map 创建原理

ebpf 程序需要由用户态进程(程序) load 进内核,由于 bpf syscall 的存在,ebpf map 创建可以大致分两种方式:

  1. 用户态进程(程序)通过 bpf syscall 来创建和管理 ebpf map;
  2. 内核态在 load ebpf 程序的时候通过解析 ELF 文件的 map section 来创建 ebpf map;

1. 用户态创建 map

用户态直接创建 map 的原理主要是根据 bpf_attr 定义调用 bpf syscall 实现的,具体如下代码所示:

#include <linux/bpf.h>

union bpf_attr my_map_attr {
  .map_type = BPF_MAP_TYPE_ARRAY,
  .key_size = sizeof(int),
  .value_size = sizeof(int),
  .max_entries = 1024,
};

int fd = bpf(BPF_MAP_CREATE, &my_map_attr, sizeof(my_map_attr));

2. 内核态创建 map

在 bpf 程序中添加如下结构体声明即可在 bpf 成加载流程中创建 ebpf map,关键的原理还是在于 kernel 加载 bpf 程序的时候(load_bpf_file()),如果解析 bpf 程序(object 文件)中包括 maps section 定义就会触发 load_maps执行,这其中就包括了 bpf_create_map_node()bpf_create_map_in_map_node() 函数。

💡
注意这里所涉及的 API 特指 libbpf,llvm 在将 bpf 程序的 c 文件编译成 object 文件时会链接 libbpf
struct bpf_map_def SEC("maps") my_bpf_map = {
  .type       = BPF_MAP_TYPE_HASH,
  .key_size   = sizeof(int),
  .value_size   = sizeof(int),
  .max_entries = 100,
};

ebpf map 管理

map 创建完成之后涉及到的就是 CRUD 了,主要还是 map 相关几个操作函数:

helper:(kernel space)
- void *bpf_map_lookup_elem(struct bpf_map *map, const void *key)
- long bpf_map_update_elem(struct bpf_map *map, const void *key,
       const void *value, u64 flags)
- long bpf_map_delete_elem(struct bpf_map *map, const void *key)
- ...

libbpf:(user space)
// https://elixir.bootlin.com/linux/v4.19.261/source/tools/lib/bpf/bpf.c#L299
- int bpf_map_lookup_elem(int fd, const void *key, void *value)
- int bpf_map_update_elem(int fd, const void *key, const void *value,
			__u64 flags)
- int bpf_map_delete_elem(int fd, const void *key)
- ...

ebpf map 使用方法

共享数据

/* example ebpf program from:
 *   https://github.com/bigwhite/experiments/blob/master/ebpf-examples/execve-counter/execve_counter.bpf.c
 */

#include <bpf/bpf_helpers.h>

typedef __u64 u64;
typedef char stringkey[64];

struct {
    __uint(type, BPF_MAP_TYPE_HASH);
    __uint(max_entries, 128);
    //__type(key, stringkey);
	stringkey* key;
    __type(value, u64);
} execve_counter SEC(".maps");

SEC("tracepoint/syscalls/sys_enter_execve")
int bpf_prog(void *ctx) {
  stringkey key = "execve_counter";
  u64 *v = NULL;
  v = bpf_map_lookup_elem(&execve_counter, &key);
  if (v != NULL) {
    *v += 1;
    bpf_map_update_elem(&execve_counter, &key, v, BPF_ANY);
    bpf_printk("map value: %d\n", *v);
  }
  return 0;
}

char LICENSE[] SEC("license") = "Dual BSD/GPL";

/* example userspace program from:
 *   https://github.com/bigwhite/experiments/blob/master/ebpf-examples/execve-counter/execve_counter.c
 */
#include <stdio.h>
#include <unistd.h>
#include <sys/resource.h>
#include <bpf/libbpf.h>
#include <linux/bpf.h>
#include "execve_counter.skel.h"

typedef __u64 u64;

static int libbpf_print_fn(enum libbpf_print_level level, const char *format, va_list args)
{
	return vfprintf(stderr, format, args);
}

int main(int argc, char **argv)
{
	struct execve_counter_bpf *skel;
	int err;

	libbpf_set_strict_mode(LIBBPF_STRICT_ALL);
	/* Set up libbpf errors and debug info callback */
	libbpf_set_print(libbpf_print_fn);

	/* Open BPF application */
	skel = execve_counter_bpf__open();
	if (!skel) {
		fprintf(stderr, "Failed to open BPF skeleton\n");
		return 1;
	}

	/* Load & verify BPF programs */
	err = execve_counter_bpf__load(skel);
	if (err) {
		fprintf(stderr, "Failed to load and verify BPF skeleton\n");
		goto cleanup;
	}

	/* init the counter */
	char key[16] = "execve_counter";
	u64 v = 0;
	err = bpf_map__update_elem(skel->maps.execve_counter, &key, sizeof(key), &v, sizeof(v), BPF_ANY);
	if (err != 0) {
		fprintf(stderr, "Failed to init the counter, %d\n", err);
		goto cleanup;
	}

	/* Attach tracepoint handler */
	err = execve_counter_bpf__attach(skel);
	if (err) {
		fprintf(stderr, "Failed to attach BPF skeleton\n");
		goto cleanup;
	}

	for (;;) {
			// read counter value from map
			//
			//LIBBPF_API int bpf_map__lookup_elem(const struct bpf_map *map,
            //        const void *key, size_t key_sz,
            //        void *value, size_t value_sz, __u64 flags);
			//        /usr/local/bpf/include/bpf/libbpf.h
			err = bpf_map__lookup_elem(skel->maps.execve_counter, &key, sizeof(key), &v, sizeof(v), BPF_ANY);
			if (err != 0) {
               fprintf(stderr, "Lookup key from map error: %d\n", err);
               goto cleanup;
			} else {
			   printf("execve_counter is %llu\n", v);
			}

			sleep(5);
	}

cleanup:
	execve_counter_bpf__destroy(skel);
	return -err;
}

共享事件

perf buffer

/* bpf program example from:
 *  https://github.com/anakryiko/bpf-ringbuf-examples/blob/main/src/perfbuf-output.bpf.c
 */
/* BPF perfbuf map */
struct {
	__uint(type, BPF_MAP_TYPE_PERF_EVENT_ARRAY);
	__uint(key_size, sizeof(int));
	__uint(value_size, sizeof(int));
} pb SEC(".maps");

struct {
	__uint(type, BPF_MAP_TYPE_PERCPU_ARRAY);
	__uint(max_entries, 1);
	__type(key, int);
	__type(value, struct event);
} heap SEC(".maps");

SEC("tp/sched/sched_process_exec")
int handle_exec(struct trace_event_raw_sched_process_exec *ctx)
{
	unsigned fname_off = ctx->__data_loc_filename & 0xFFFF;
	struct event *e;
	int zero = 0;

	e = bpf_map_lookup_elem(&heap, &zero);
	if (!e) /* can't happen */
		return 0;

	e->pid = bpf_get_current_pid_tgid() >> 32;
	bpf_get_current_comm(&e->comm, sizeof(e->comm));
	bpf_probe_read_str(&e->filename, sizeof(e->filename), (void *)ctx + fname_off);

	bpf_perf_event_output(ctx, &pb, BPF_F_CURRENT_CPU, e, sizeof(*e));
	return 0;
}

/* userspace program example from:
 *   https://github.com/anakryiko/bpf-ringbuf-examples/blob/main/src/perfbuf-output.c
 */
int main(int argc, char **argv)
{
	struct perf_buffer *pb = NULL;
	struct perf_buffer_opts pb_opts = {};
	struct perfbuf_output_bpf *skel;
	int err;

	/* Set up libbpf logging callback */
	libbpf_set_print(libbpf_print_fn);

	/* Bump RLIMIT_MEMLOCK to create BPF maps */
	bump_memlock_rlimit();

	/* Clean handling of Ctrl-C */
	signal(SIGINT, sig_handler);
	signal(SIGTERM, sig_handler);

	/* Load and verify BPF application */
	skel = perfbuf_output_bpf__open_and_load();
	if (!skel) {
		fprintf(stderr, "Failed to open and load BPF skeleton\n");
		return 1;
	}

	/* Attach tracepoint */
	err = perfbuf_output_bpf__attach(skel);
	if (err) {
		fprintf(stderr, "Failed to attach BPF skeleton\n");
		goto cleanup;
	}

	/* Set up ring buffer polling */
	pb_opts.sample_cb = handle_event;
	pb = perf_buffer__new(bpf_map__fd(skel->maps.pb), 8 /* 32KB per CPU */, &pb_opts);
	if (libbpf_get_error(pb)) {
		err = -1;
		fprintf(stderr, "Failed to create perf buffer\n");
		goto cleanup;
	}

	/* Process events */
	printf("%-8s %-5s %-7s %-16s %s\n",
	       "TIME", "EVENT", "PID", "COMM", "FILENAME");
	while (!exiting) {
		err = perf_buffer__poll(pb, 100 /* timeout, ms */);
		/* Ctrl-C will cause -EINTR */
		if (err == -EINTR) {
			err = 0;
			break;
		}
		if (err < 0) {
			printf("Error polling perf buffer: %d\n", err);
			break;
		}
	}

cleanup:
	perf_buffer__free(pb);
	perfbuf_output_bpf__destroy(skel);

	return err < 0 ? -err : 0;
}

ring buffer

/* bpf program example from:
 *   https://github.com/anakryiko/bpf-ringbuf-examples/blob/main/src/ringbuf-reserve-submit.bpf.c
 */
#include <linux/bpf.h>
#include <bpf/bpf_helpers.h>
#include "common.h"

char LICENSE[] SEC("license") = "Dual BSD/GPL";

/* BPF ringbuf map */
struct {
	__uint(type, BPF_MAP_TYPE_RINGBUF);
	__uint(max_entries, 256 * 1024 /* 256 KB */);
} rb SEC(".maps");

SEC("tp/sched/sched_process_exec")
int handle_exec(struct trace_event_raw_sched_process_exec *ctx)
{
	unsigned fname_off = ctx->__data_loc_filename & 0xFFFF;
	struct event *e;

	e = bpf_ringbuf_reserve(&rb, sizeof(*e), 0);
	if (!e)
		return 0;

	e->pid = bpf_get_current_pid_tgid() >> 32;
	bpf_get_current_comm(&e->comm, sizeof(e->comm));
	bpf_probe_read_str(&e->filename, sizeof(e->filename), (void *)ctx + fname_off);

	bpf_ringbuf_submit(e, 0);
	return 0;
}


/* userspace example program:
 *   https://github.com/anakryiko/bpf-ringbuf-examples/blob/main/src/ringbuf-reserve-submit.c
 */
#include <errno.h>
#include <signal.h>
#include <stdio.h>
#include <time.h>
#include <sys/resource.h>
#include <bpf/libbpf.h>
#include "common.h"
#include "ringbuf-reserve-submit.skel.h"

int libbpf_print_fn(enum libbpf_print_level level, const char *format, va_list args)
{
	/* Ignore debug-level libbpf logs */
	if (level > LIBBPF_INFO)
		return 0;
	return vfprintf(stderr, format, args);
}

void bump_memlock_rlimit(void)
{
	struct rlimit rlim_new = {
		.rlim_cur	= RLIM_INFINITY,
		.rlim_max	= RLIM_INFINITY,
	};

	if (setrlimit(RLIMIT_MEMLOCK, &rlim_new)) {
		fprintf(stderr, "Failed to increase RLIMIT_MEMLOCK limit!\n");
		exit(1);
	}
}

static volatile bool exiting = false;

static void sig_handler(int sig)
{
	exiting = true;
}

int handle_event(void *ctx, void *data, size_t data_sz)
{
	const struct event *e = data;
	struct tm *tm;
	char ts[32];
	time_t t;

	time(&t);
	tm = localtime(&t);
	strftime(ts, sizeof(ts), "%H:%M:%S", tm);

	printf("%-8s %-5s %-7d %-16s %s\n", ts, "EXEC", e->pid, e->comm, e->filename);

	return 0;
}

int main(int argc, char **argv)
{
	struct ring_buffer *rb = NULL;
	struct ringbuf_reserve_submit_bpf *skel;
	int err;

	/* Set up libbpf logging callback */
	libbpf_set_print(libbpf_print_fn);

	/* Bump RLIMIT_MEMLOCK to create BPF maps */
	bump_memlock_rlimit();

	/* Clean handling of Ctrl-C */
	signal(SIGINT, sig_handler);
	signal(SIGTERM, sig_handler);

	/* Load and verify BPF application */
	skel = ringbuf_reserve_submit_bpf__open_and_load();
	if (!skel) {
		fprintf(stderr, "Failed to open and load BPF skeleton\n");
		return 1;
	}

	/* Attach tracepoint */
	err = ringbuf_reserve_submit_bpf__attach(skel);
	if (err) {
		fprintf(stderr, "Failed to attach BPF skeleton\n");
		goto cleanup;
	}

	/* Set up ring buffer polling */
	rb = ring_buffer__new(bpf_map__fd(skel->maps.rb), handle_event, NULL, NULL);
	if (!rb) {
		err = -1;
		fprintf(stderr, "Failed to create ring buffer\n");
		goto cleanup;
	}

	/* Process events */
	printf("%-8s %-5s %-7s %-16s %s\n",
	       "TIME", "EVENT", "PID", "COMM", "FILENAME");
	while (!exiting) {
		err = ring_buffer__poll(rb, 100 /* timeout, ms */);
		/* Ctrl-C will cause -EINTR */
		if (err == -EINTR) {
			err = 0;
			break;
		}
		if (err < 0) {
			printf("Error polling ring buffer: %d\n", err);
			break;
		}
	}

cleanup:
	ring_buffer__free(rb);
	ringbuf_reserve_submit_bpf__destroy(skel);

	return err < 0 ? -err : 0;
}

References

  1. BPF数据传递的桥梁——BPF Map
  2. bpf(2) - Linux manual page
  3. bpf-helpers(7) - Linux manual page
